Udor Kappa 43/GR Diaphragm Pump

Udor Kappa 43/GR Triple Diaphragm Pump, part #03-K43GR

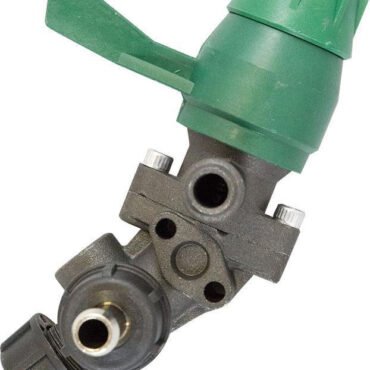

• Three diaphragm diaphragm pump with control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge.
• Equipped with a 25mm keyed shaft & mounting rails.



 SPECIFICATIONS

Maximum Flow . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5 GPM

Maximum Pressure . . . . . . . .  . . . . . . . . . . . . . . . 560 PSI

Maximum RPM. . . . . . . . . . . . . . . . . . . . . . . . . . . 540 RPM

Maximum Temperature . . .. . . . . . . . . . . . . . . . . . 140_ F

Inlet Port (Hose Barb) K-43 . . .  . . . . . . . . . . . . . . 1″

Outlet Ports (Hose Barb, Ball Valve Controlled) . . . . 1/2″ (2)

Bypass (Hose Barb) . . . . . . . . . . . . . . . . . . . . . . . 3/4″

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . L-9.25″ x W-11″ x H-10″

Weight. . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 29 lbs.

Diaphragm Material Standard. . . . . . . . . . . . . . . . . DESMOPAN

 Pumps that have been installed are NOT eligible for return, refund or exchange. We do this to ensure all our customers receive pumps in brand-new, pristine condition.

Download Udor Kappa 43/GR Pump Parts Breakdown
